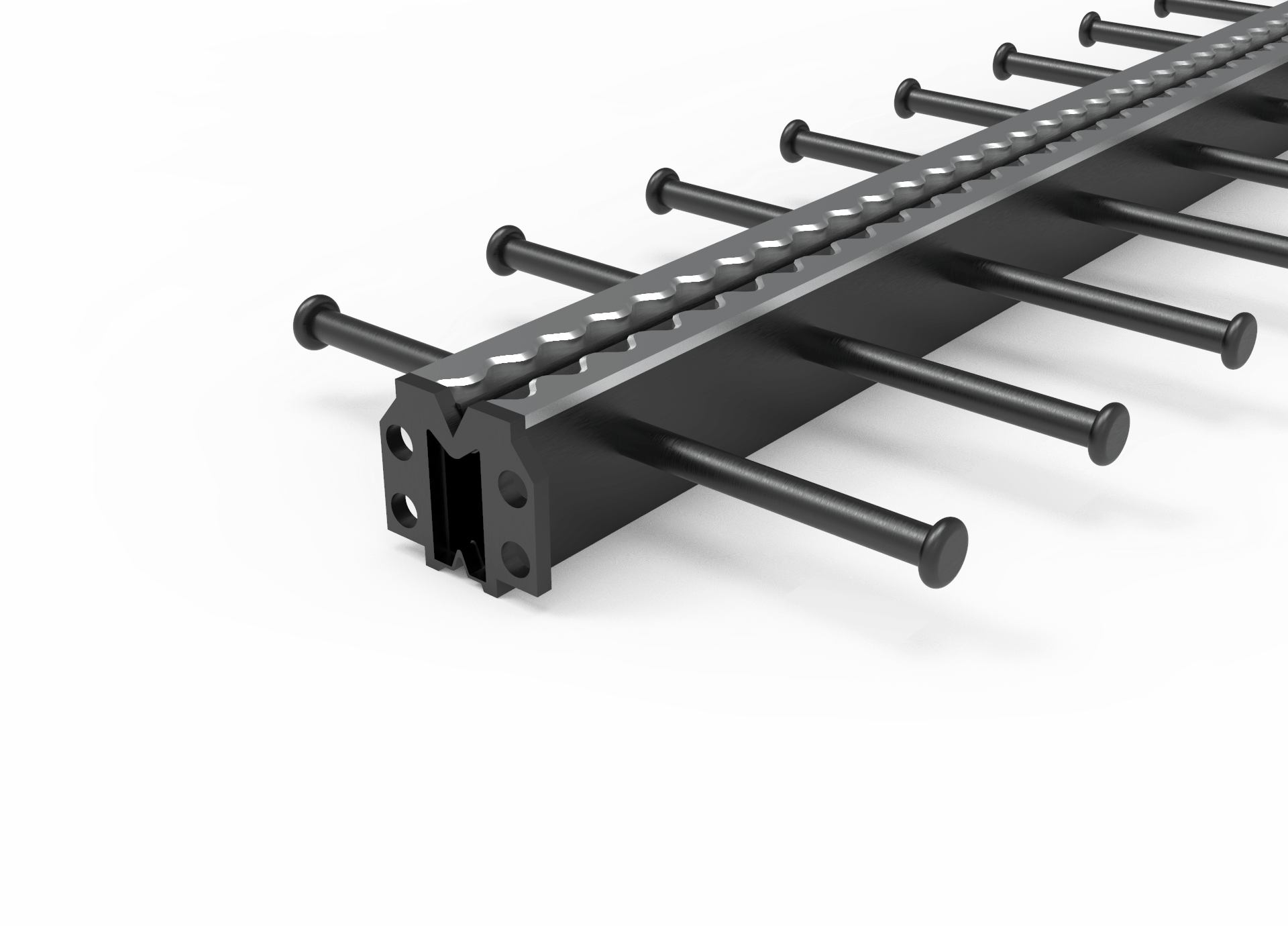

Steel New Mono-Cell Joint

Steel New Mono-Cell Joint:



DURABILITY:

Crafting the drivability surface from round-shaped steel materials, we incorporate the innovative Steel New Mono-cell joint to enhance overall performance. This design not only minimizes commotion but also ensures exceptionally high strength against wheel shock and abradability.

INSTALLATION:

With basic construction, its establishment is exceptionally simple and with the cut assembling and establishment, rapid establishment and affordable support are conceivable.

WATERPROOFING & DRAINAGE:

• Manufacturing it with a tension exceeding 1400KN for an exclusive shape, we utilize synthetic rubber with outstanding anti-ozone/freezing features and durability, making it highly robust in terms of waterproofing.

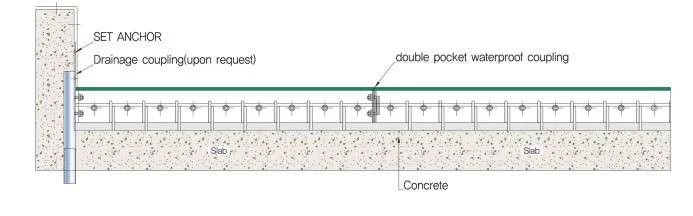

• To achieve optimal waterproofing, we insert exceptionally fabricated double pocket waterproofing couplings between independently produced items, preventing water leakage completely by utilizing connection support materials. (Korean Turnpike Partnership : survey of the development joint spillage avoidance office 2008.07)
• Water waste devices are positioned at both ends of the expansion joints, outlining a robust waterproofing system.
• The waterproofing coupling between the elements absorbs some of the vibration or impact generated as a vehicle passes over the expansion joint. The impacts are prevented from propagating throughout the entire cross-section of an expansion as a result.
• Applying water expansion resistance material allows for the complete sealing of the space between the appropriate concrete and the construction joint.






FLATNESS & DRIVABILITY:

• Round shape top plans the best drivability and the finish of top has elastic to assimilate the shock.
• Apply a bolt-type pre-setting gadget for easy field pre-setting, allowing for convenient adjustment of levelness.

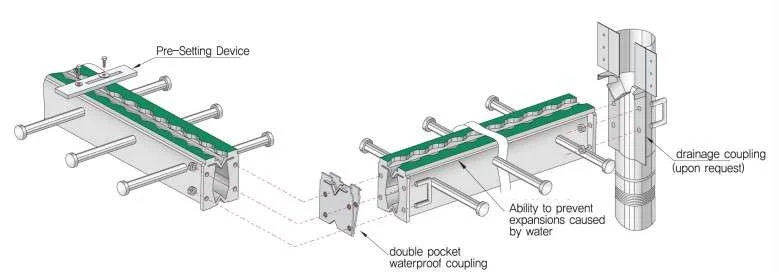

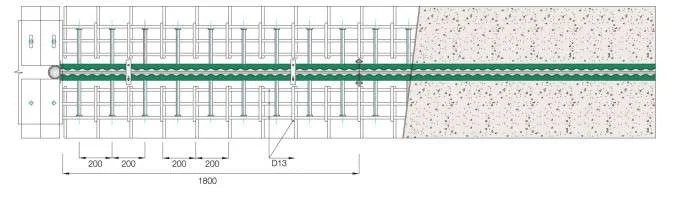

PRODUCT DETAIL VIEW:

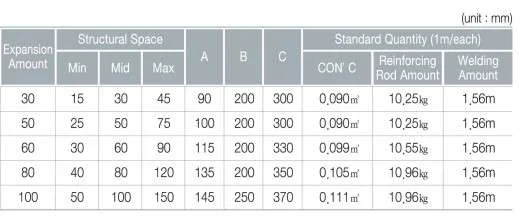

STANDARD QUANTITY TABLE:



1. The Above aspects are standard aspects. They are Liable to change contingent upon the site conditions.
2.  A seepage coupling in a space with a slight upward slope facilitates the management of water waste.

3. Fabricators use an H-bar to construct the New Mono Cell, enhancing its strength.

4. To prevent leakage in the device joint, install and secure a water coupling with a C-shaped bolt.(Korea Turnpike Enterprise : survey of development joint gadgets spillage anticipation offices)
5. Seek after an elastic type of mono cell; subsequently, apply another mono cell with a wheel-to-ground contact surface made of steel. (Korea Interstate Enterprise : Application plan for an expansion joint gadget)
6. Concerning stretches for item establishment, ask our designing group.
