WOXD Two Profile EX Joint
Technical Data Sheet
FEATURES
Woxd Two Profile EX Joint is designed for strength and is highly valued for the benefits it offers in various structural and construction projects. It gives magnificent traffic Comfort. Profile components essentially expel two aluminum alloy segments.
• DESIGN PATTERN:

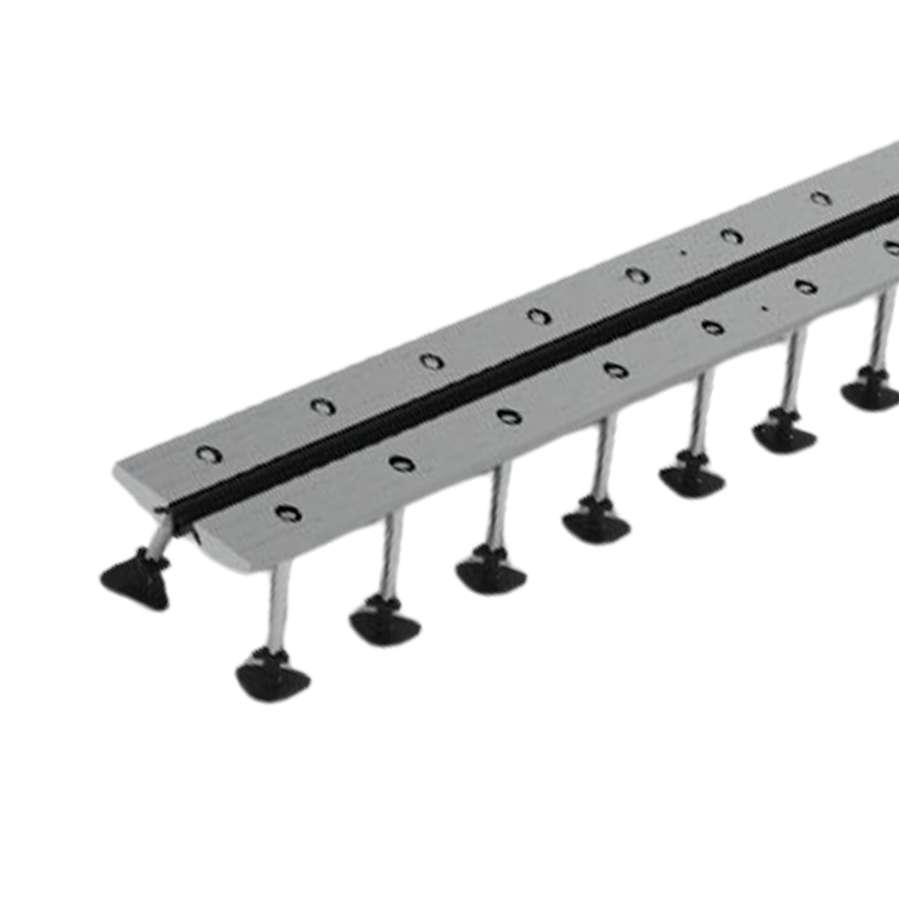

Woxd is a couple of metal component which is essentially Aluminum Combination of Grade A6061-T6. It is trapezoidal sectional in shape.
The two components are organized eye to eye which are associated with the elastomeric profile seal by interlocking joint plan framework. Every unit size changes from 1 to 6 meter of length.The metallic components are moored to the construction by latches.
• JOINT MOVEMENT:
The intention for the joints is to develop up to 14mm or 100mm relying upon elastomeric profile seal. It can acknowledge any measure of slant with no
Change into their inherent characteristics as there are no teeth or fingers.
• NOISE FREE
The absence of metal-to-metal contact prevents the generation of noise, ensuring a comfortable ride. There is no welded obsession which is the preeminent
reason making it a joint liberated from commotion contamination.
• GOOD RESISTANCE POWER:
Its resistance to heavy and continuous traffic loads is achieved through fixation by pre-stressed tension bolts. It has incredible adoptability to all surface
structure types whether new and old designs. It has a magnificent opposition against shocks and vibrations.
• ELASTOMERIC PROFILE PREVENTS FOREIGN BODY:
Insert an elastomeric profile, typically known as NEOPRENE and made of EPDM/CR, between the two components. The profile is an extruded synthetic rubber conforming to standard AASHTO M251 and EU 1337-3. The elastomeric rubber seal extends end-to-end along the joint length, preventing any disruptions.
The elastomeric rubber seal, spanning end-to-end along the joint length, prevents the entrance of foreign bodies, while simultaneously protecting sub-structures such as bearing devices and concrete beneath the joint. We install this part beneath the surface layer, and it does not withstand traffic loads. It is removable too subsequent to opening it from
the interlocking joint framework as expected for support.
• GALVANISED ANCHOR BOLT AND WASHER:
The Anchor Electrical jolt class 10.9 standards link the element to the structure, and the bolt heads’ washers are also fabricated from galvanized steel for corrosion protection
against corrosion
• Polyvinyl Chloride (PVC) SHEATH:
Polyvinyl Chloride (PVC) comprises a defensive sheath that safeguards the anchor bolt at the time of new cement pouring for easy portability and tightening of bolts. The force wrench ties this in the cast iron attachment/securing pieces after the concrete has cured and settled.
• VERTICAL AND SEISMIC MOVEMENT:
Vertical development of construction is feasible for jacking reason without the need to dismantle the joint for support reason which saves
time and cash. It is reasonable for cross over conduct and earth tremor obstruction demonstrating it a most ideal decision for seismic development.
• DURABLE FIXATION:
The metallic component is securely anchored to the structure with four pre-stressed tension bolts on each side per meter, ensuring effective post-tensioning.
gives a super durable compressional stress between the joint and design which hold back jolting. Effectively, the Woxd can be removed since the anchor strain screws are accessible, thanks to the method of securing the elastomeric segment.
• CONCRETE CASTING PRECUATIONS:
The projecting concrete should be of 6000 psi while the squash used in it should be of 12mm for the best particular presenting of joint and opening free concrete.
The Expansion Social occasion will set for 1.6″ (40mm) at 20 C Incorporating Temperature. At other temperatures, The Venture worker will submit the proposed setting opening for the expert’s approval.
